Aluminum Profiles

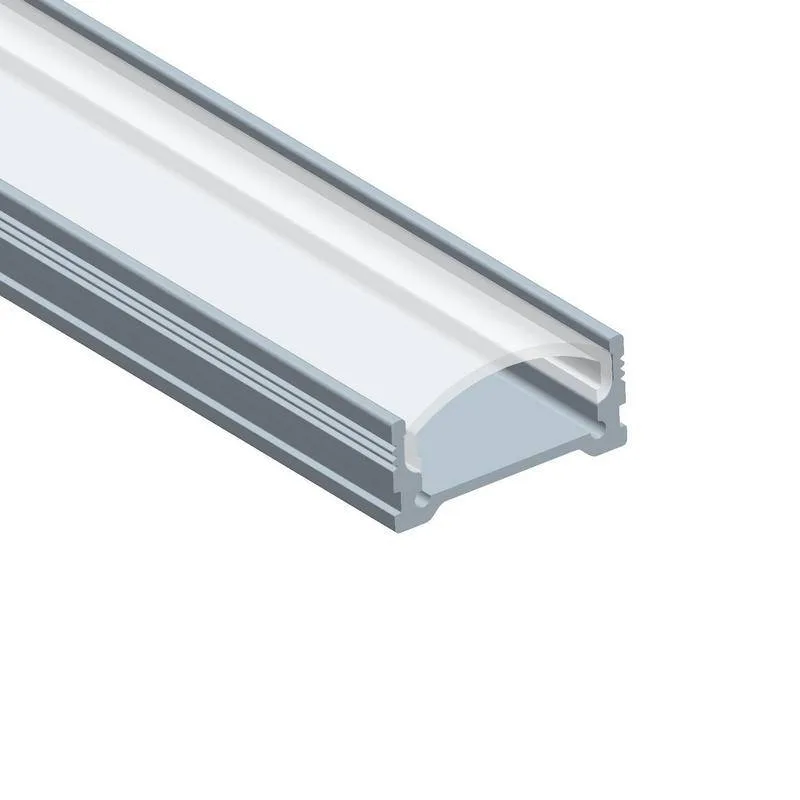

AP-014-U-W20.5-H10.8-D6.8-L14

Linear Light Aluminum Profile W-20.5mm H-10.8mm Diffusion Distance-6.8mm StripW-14mm

width-2030height-1020lswidth-1020
Aluminum profiles and accessories can be provided separately or as a complete assembly.

Fixed Parameters

Width
Max Width
20.5
Height
Max Height
10.8
Diffusion Distance
Distance from LED to Cover
6.8
StripWidth
Max Strip Width
14

相关服务

LED Strip

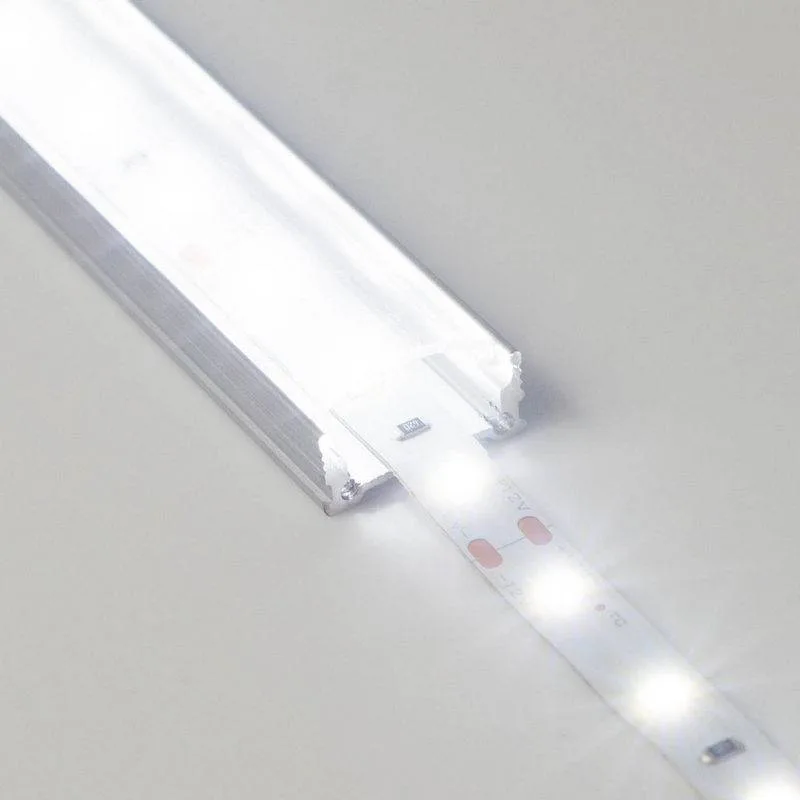

Can be provided fully assembled with LED strips
Cables and Connectors
Can be supplied with any type of cables and connectors
Transformers and Plugs
Available in different power transformers and plugs

Downloads

2D Drawing - DXFDXFDownload3D Drawing - STPSTPDownload
