AP-008-U-W17.5-H9.2-D6.6-L12.7AP-008-U-W17.5-H9.2-D6.6-L12.7AP-008-U-W17.5-H9.2-D6.6-L12.7AP-008-U-W17.5-H9.2-D6.6-L12.7
Aluminum Profiles

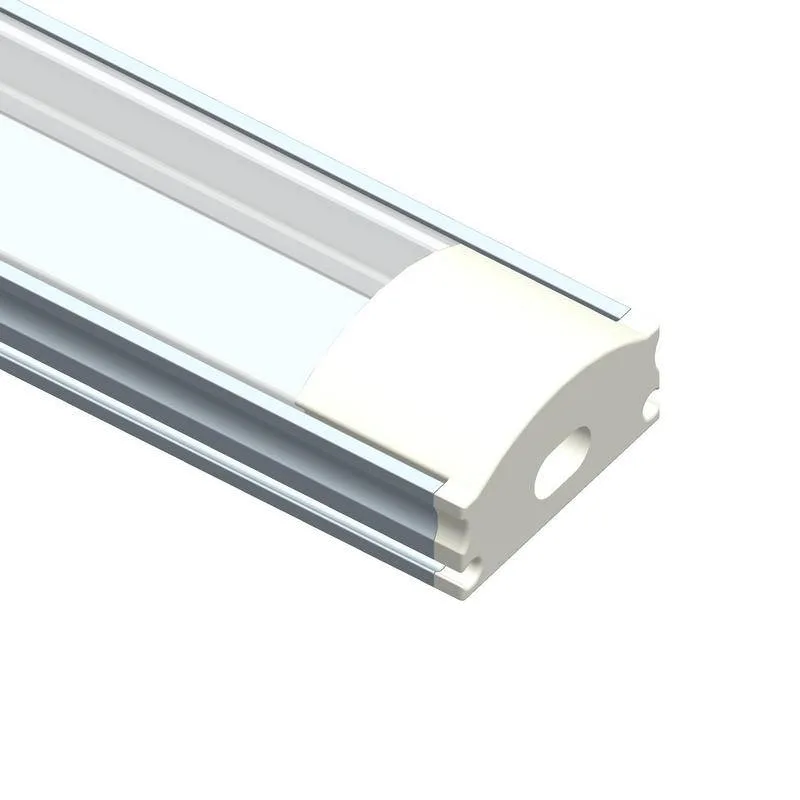

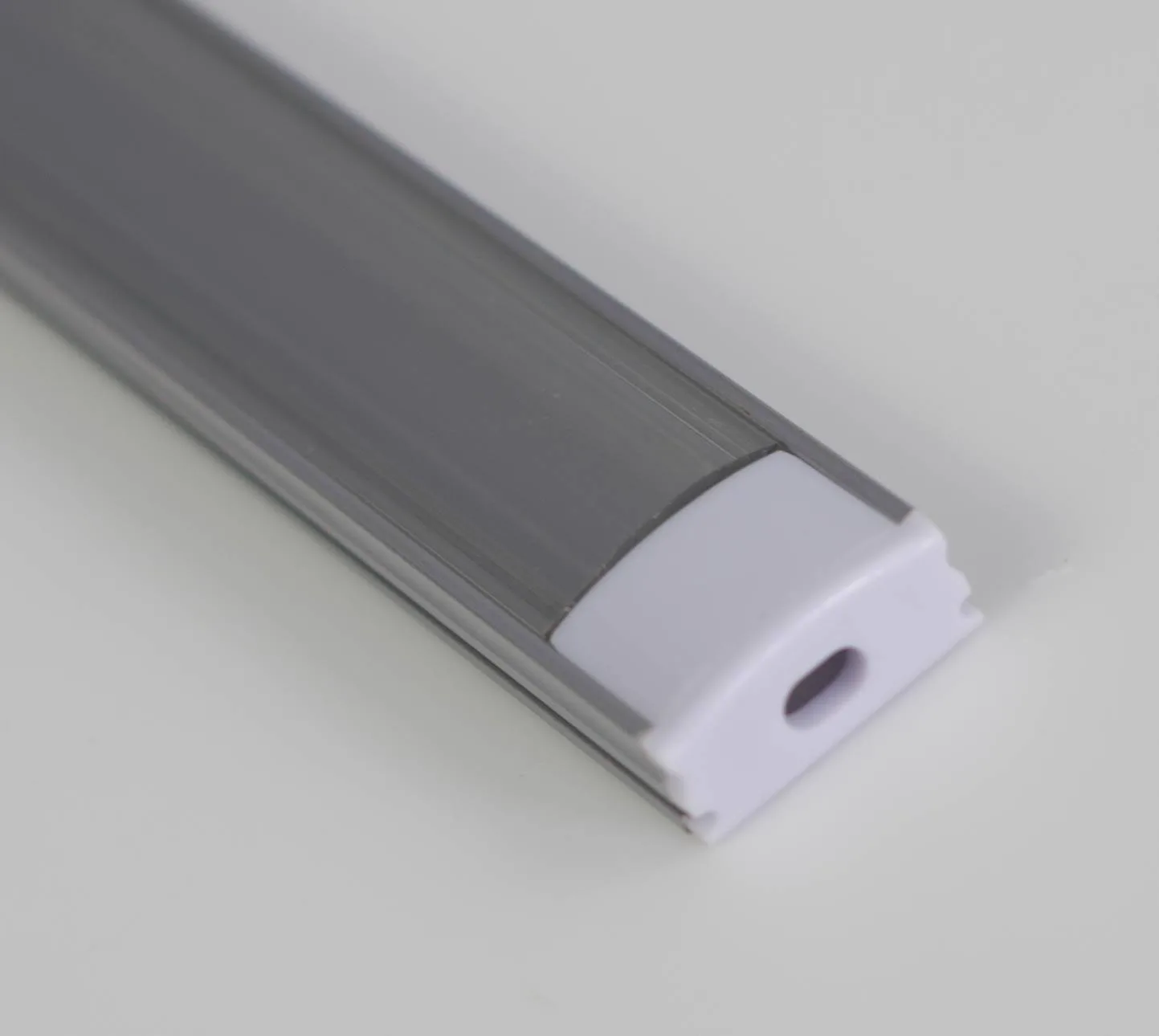

AP-008-U-W17.5-H9.2-D6.6-L12.7

Linear Light Aluminum Profile W-17.5mm H-9.2mm Diffusion Distance-6.6mm StripW-12.7mm

width-1020height-10lswidth-1020
Aluminum profiles and accessories can be provided separately or as a complete assembly.

Fixed Parameters

Width
Max Width
17.5
Height
Max Height
9.2
Diffusion Distance
Distance from LED to Cover
6.6
StripWidth
Max Strip Width
12.7

相关服务

LED Strip

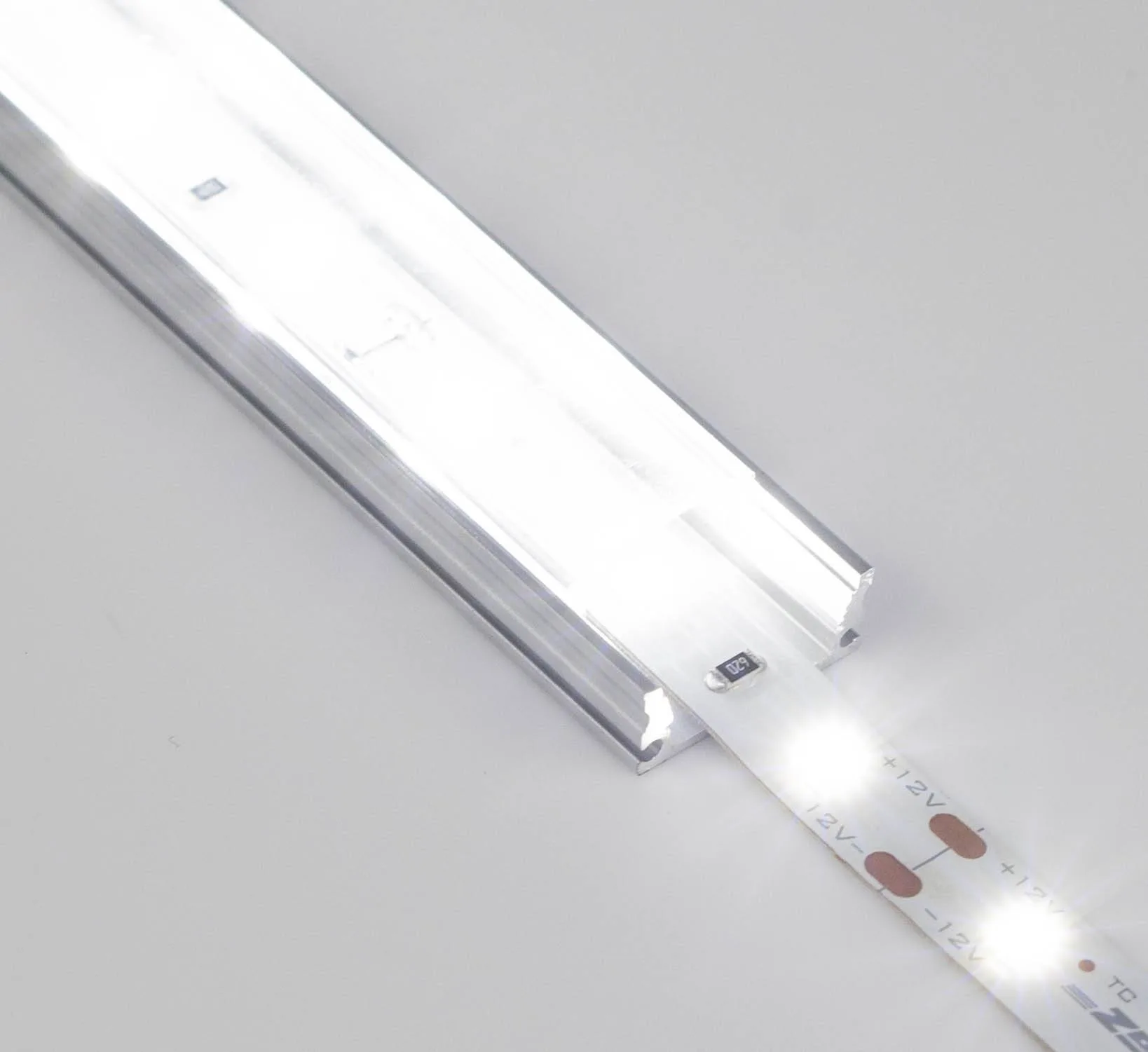

Can be provided fully assembled with LED strips
Cables and Connectors
Can be supplied with any type of cables and connectors
Transformers and Plugs
Available in different power transformers and plugs

Downloads

2D Drawing - DXFDXFDownload3D Drawing - STPSTPDownload
