Aluminum Profiles

AP-007-U-W18.1-H15.7-D11-L12

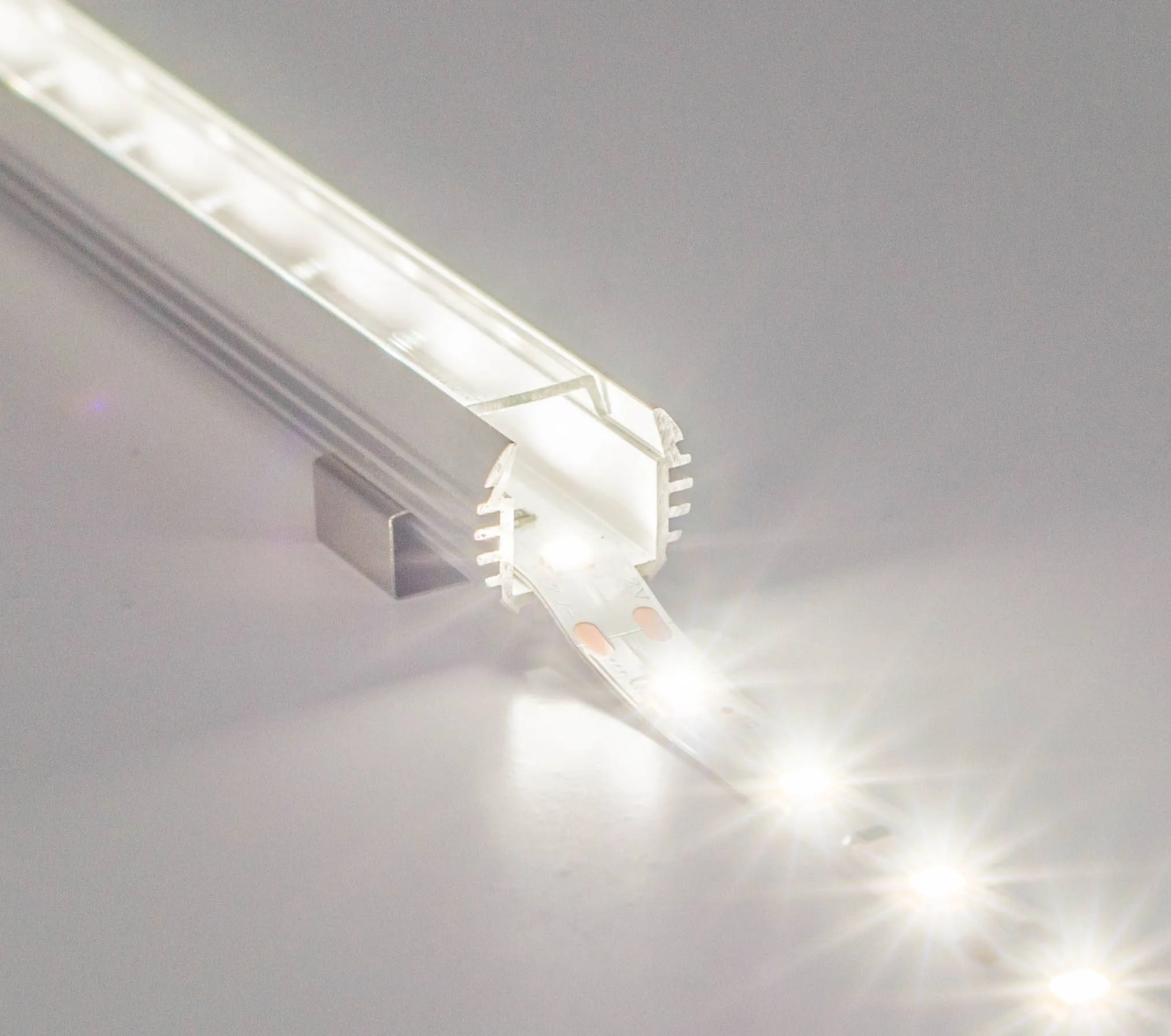

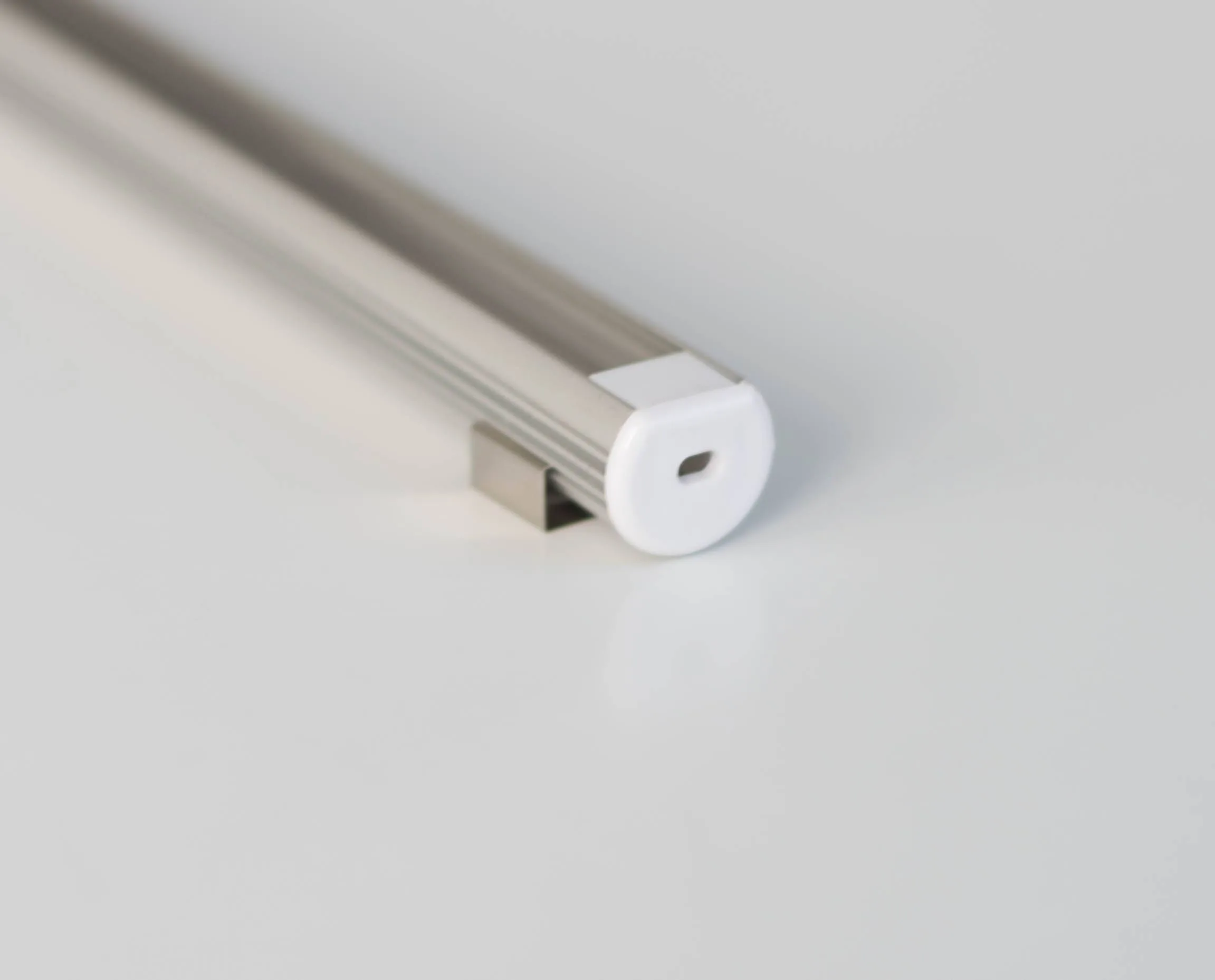

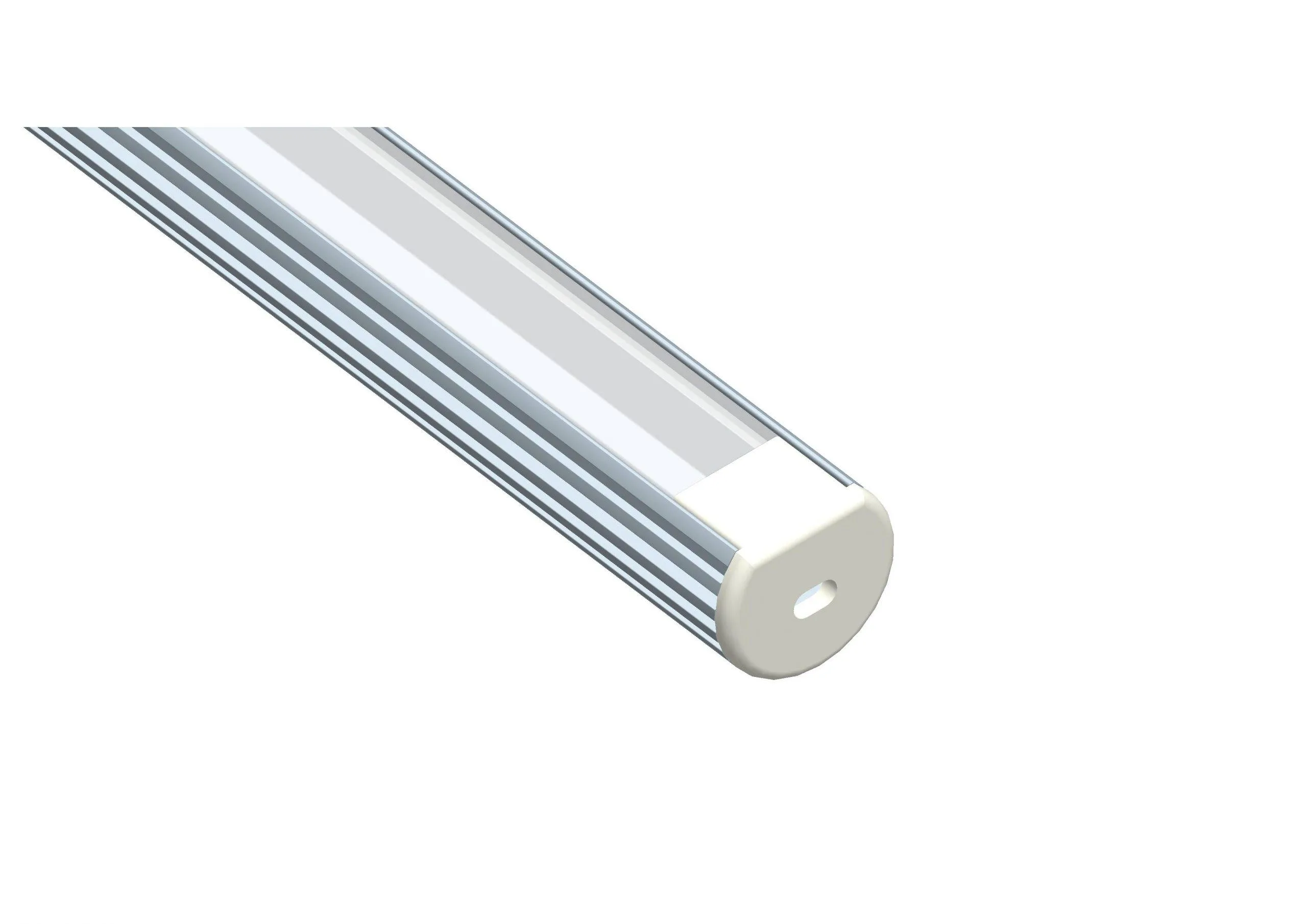

Linear Light Aluminum Profile W-18.1mm H-15.7mm Diffusion Distance-11mm StripW-12mm

width-1020height-1020lswidth-1020
Aluminum profiles and accessories can be provided separately or as a complete assembly.

Fixed Parameters

Width
Max Width
18.1
Height
Max Height
15.7
Diffusion Distance
Distance from LED to Cover
11
StripWidth
Max Strip Width
12

相关服务

LED Strip
Can be provided fully assembled with LED strips
Cables and Connectors
Can be supplied with any type of cables and connectors
Transformers and Plugs
Available in different power transformers and plugs

Downloads

2D Drawing - DXFDXFDownload3D Drawing - STPSTPDownload
